Quickly Details:
Square manual lifting telescopic mast for mobile solar trailers and
mobile surveillance unit box, the lifting winch is optional, we
have manual lifting winch and electric winch. Also we can customize
the color for customers, we have white and black at present, as
long as customer send us the color code. It will be fine for us to make other colors.
Explanation of cold galvanizing of mast:
Cold galvanizing is a treatment method commonly used for
anti-corrosion materials, which forms a layer of anti-corrosion
protective layer by depositing zinc on the surface of steel, so
that steel has a longer service life and better anti-corrosion
ability. The mast is made of steel, and in order to increase the
corrosion resistance of the mast, we will cold galvanize the
surface of the mast.
Cold galvanizing can effectively prevent oxidative corrosion on the
surface of the mast, thus extending the service life of the mast.
Secondly, the hardness of cold galvanized is higher, and it is not
easy to be scratched or subjected to wear. In addition, the surface
of cold galvanized is smooth and beautiful, so that it has a wide
range of decorative and beautifying effects.
1. Construction sites, emergency situations, outdoor events, and
more.
2. Fixing method: Install the lifting rod on the top or the
periphery of the equipment, and vertically lift the lighting
equipment and camera equipment to the lifting equipment that
realizes the customer's predetermined function at high altitude;
3. For mounting on trailers, lifting lights and cameras;
4. Monitoring box: Put the mast in the monitoring box and lift the
lights and cameras;
Noted: the mast of height can be customized according to the customer's
requirements.
Specification of Standard product :
| ENWEI-S Manual Telescopic mast |
| Item | 6m telescopic mast | 7m telescopic mast | 7.5m telescopic mast | 8m telescopic mast | 9m telescopic mast |
| Lifiting mode | manual | manual | manual | manual | manual |
| Rise height | 6m | 7m | 7.5m | 8m | 9m |
| Sections | 4 | 5 | 5 | 5 | 5 |
| Closed height | 1930mm | 1930mm | 1990mm | 2100mmm | 2300mm |
| Max. outer diameter | 120*120mm | 140*140mm | 140*140mm | 140*140mm | 140*140mm |
| Min. diameter | 60*60mm | 60*60mm | 60*60mm | 60*60mm | 60*60mm |
| Max. bearing capacity | ≤60kg | ≤60kg | ≤60kg | ≤60kg | ≤60kg |
| Reference weight | 73kg | 80kg | 85kg | 90 | 97 |
| Manual winch | 1200LBS |
| Pulley | Q235B stainless steel |
| Surface treatment | Cold dip galvanzing + powder spraying |

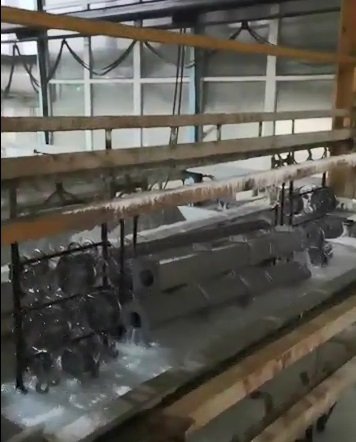

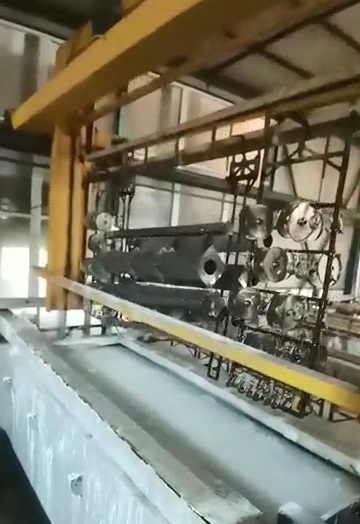

Cold galvanizing works:
Certification:
More Details:
The manual mast can be customized to a maximum of 10 meters and a
maximum load of 60kg, which can be customized according to customer
requirements.
Packing:
