Cold Dip Galvanized Steel Plate Telescopic Camera Cctv Mast Pole
For Solar Surveillance Trailer
Quickly details:
Compact structure design, convenient transportation and
installation.
The base is stable and solid, with excellent stability.
IP65 protection grade, with excellent water and dust resistance.
Made of high-strength material that can withstand greater weight
and wind.
Description:

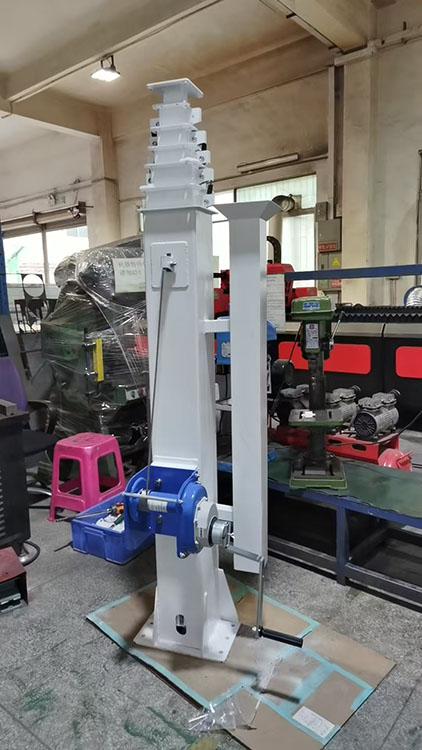

The cold dip galvanized steel plate telescopic camera cctv mast
pole is controlled by the internal device driven by the hand
handle, while the surface treatment is treated by cold-dipped
galvanized steel plate and powder coating, making the mast can
adapt to the harsher environment and has excellent corrosion
resistance.
Applications:
It is suitable for mobile solar lighting trailer, equipped with
lighting fixtures, providing sufficient lighting for temporary
lighting and emergency rescue.
Suitable for mobile monitoring trailers, monitoring cameras can be
installed on the top of the mast, and the monitoring range can be
controlled by adjusting the height of the mast to expand the
monitoring effect.
Specification:
| Item | 6m telescopic mast | 7m telescopic mast | 8m telescopic mast | 9m telescopic mast |
| Lifiting mode | Manual | Manual | Manual | Manual |
| Rise height | 6M | 7M | 8M | 9M |
| Sections | 5 | 5 | 6 | 7 |
| Max. outer diameter | 160*170mm | 160*170mm | 160*170mm | 160*170mm |
| Waterproof | Good |
| Min. diameter | 82*75mm | 82*75mm | 75*70mm | 75*70mm |
| Max. bearing capacity | 50kg | 50kg | 50kg | 50kg |
| Manual winch | 2000lbs |
| Surface treatment | Cold dip galvanized steel plate and powder coated |
