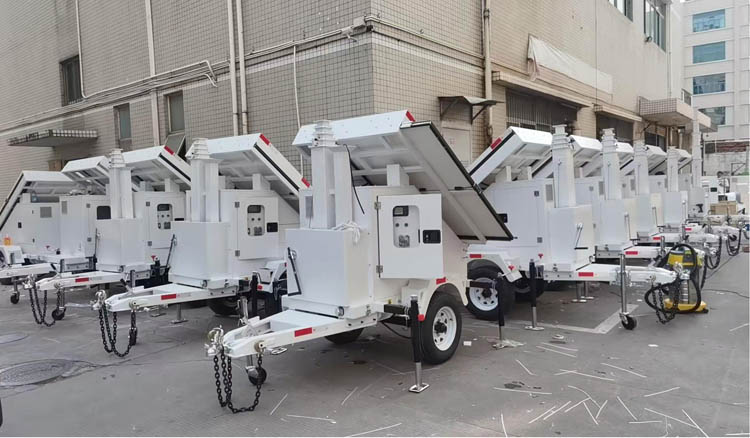

Solar Powered Surveillance Trailer For Off Grid Remote Area
Monitoring
1. The solar security trailer equipped with high-efficiency
monocrystalline silicon solar panels 3*400W and large-capacity
battery packs 4*200Ah, it can completely rely on solar power to
achieve 24/7 off-grid monitoring.
2. Single axle trailer design, net weight of about 1000kg, can be
pulled by truck or pickup truck, support fast transportation.
3. A 6-meter manual retractable mast can lift the camera to high
altitude to expand the monitoring field of view, support customer
choice camera.
4. The mast adopts cold galvanized + powder spraying process, and
the main trailer waterproof grade reaches IP66/IP67, which can
resist the harsh environment such as rainstorm and dust.
Application:
1. Provide autonomous power supply monitoring scheme for oil
fields, agricultural areas, wildlife reserves and other areas
without electricity.
2. The solar security trailer can monitor all corners of the
warehouse all day long, effectively deterring theft and protecting
the safety of goods.
3. Monitoring the parking lot around the clock to effectively deter
theft and reduce the risk of vehicle theft or theft of property
inside the vehicle.
Solar panel | 3*400W, monocrystalline silicon |
Battery | 4*200Ah, gel battery, DC12V, 9600Wh |
Controller | 60A MPPT, 95% |
Mast | 6m, manual |
Camera | provided by customer |
Trailer | US standard, ball hitch, single axle, manual outrigger |
System voltage | DC24V |
Surface treatment | Outdoor anti-oxidation electrostatic plastic powder |
Working size | 3000mm*1500mm*6000mm |
