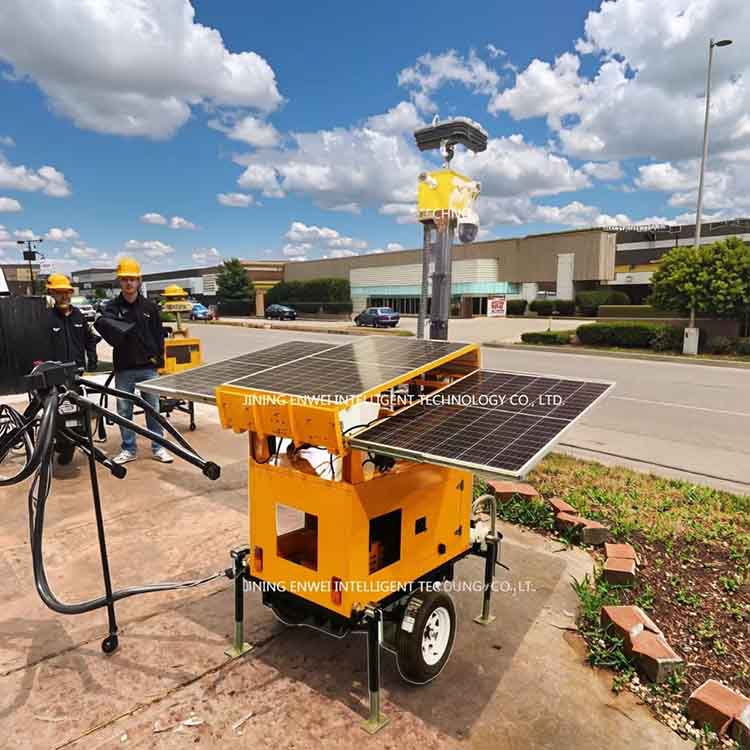

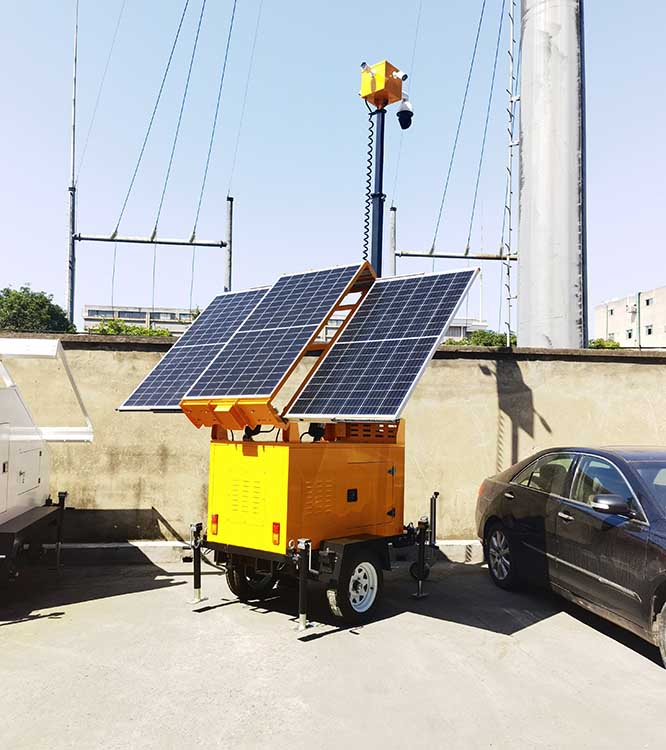

Portable Solar Powered Surveillance CCTV Trailer Mobile Solar
Camera Trailer for Remote Areas Monitoring
Quickly details:
A stable trailer chassis ensures that the trailer has good
maneuverability and stability, making it convenient for the trailer
to travel.
High-definition surveillance cameras can monitor in real time, have
a high resolution and provide clearer images.
Large-capacity gel batteries can store more electrical energy and
monitor the normal operation of equipment in insufficient light
conditions.
With an IP65 water resistance rating, it offers superior protective
performance and is suitable for various harsh natural environments.
Description:
The mobile solar monitoring trailer is composed of solar panels,
controllers, gel batteries, inverters, etc. The solar panels can
convert solar energy into electrical energy, and the gel batteries
can store more electrical energy to continuously power the
monitoring equipment.
Applications:
It is suitable for monitoring in remote areas where the power grid
is underdeveloped. Solar-powered monitoring trailers can absorb
solar energy to supply power without relying on the power grid.
It is applicable to on-site monitoring of events, sports events,
music festivals, outdoor activities, etc., and can monitor the
on-site security situation to ensure the smooth progress of the
event.
| | |
PV controller | | |
Nominal system voltage | 24V DC |
|
Communication | RS485 |
|
|
Relative humidity
| 95% | | |
Self-consumption
| 1.4~2.2W | | |
General |
|
|
System voltage | DC 24V |
|
|
PV controller | MPPT 60A, 95%(Epever) |
|
|
IP rating
| IP 65 | | |
General control
| Remote control / LCD panel | | |
Battery charging
| Solar / Mains | | |
Battery
|
|
|
Type
| Gel battery | | |
Capacity
| 4*200 AH DC12V 9600wh | | |
Mast | | |
Height | 2.5－7m, retractable | | |
Control | Electric | | |
Wind resistance | Level 8 | | |
Body | Steel Q235 | | |
Material
| Cold-Dip Galvanized Steel | | |
AC Charging | | |
Charging voltage | 110V 60HZ | | |
Power | 800W | | |
Output voltage | 24V DC | | |
Output current
| 28A | | |
Charging protection
| Over-current, over-voltage, short-circuit | | |
