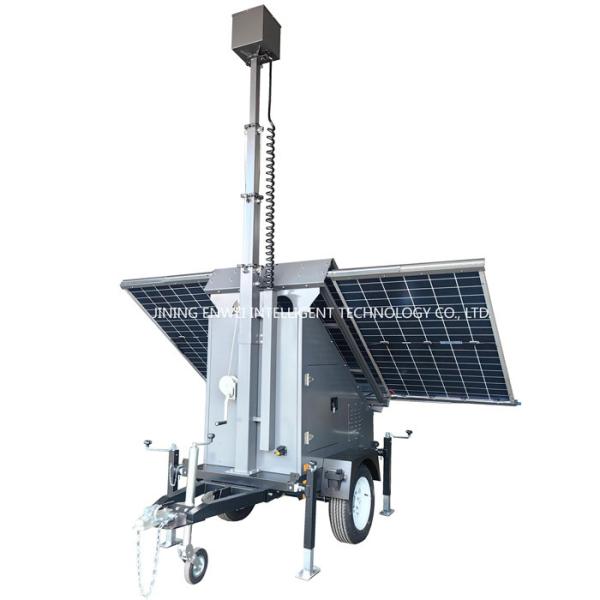

Solar Surveillance Monitor Mobile Security Trailer CCTV Camera Trailer For Commercial Building Monitoring
The solar camera trailer equipped with solar panels, it can convert solar energy into electricity to provide power support for surveillance cameras and other equipment.
This enables it to work normally in outdoor remote areas or places with inconvenient power supply, getting rid of the dependence on traditional power grids and greatly expanding the scope of use. For example, in the field of construction sites, remote farms, commercial building monitoring etc., even if there is no electricity access, it can continue to operate.
Integrated design: Security monitoring equipment, alarm system, etc. are integrated on the trailer to form a complete security solution.
Applications:
Security monitoring: Often used in construction sites, temporary activity places, public events and other places to provide 24-hour monitoring to ensure safety. Urban management: can be used for urban public facilities monitoring, event management, etc., to improve the efficiency of urban management.
Construction sites: Protect construction sites from theft and vandalism.
Remote areas: Provide security solutions in areas with insufficient power supply, such as agricultural land or field facilities.
Noted:
For the camera, different countries have different standards for cameras, and the price is different.
If the customer needs camera, purchasing the camera in your local market recommended, we will reserve space for you to install the cameras.
| Solar panels | 3*460W, Monocrystalline silicon |
| Battery | 4*200 AH DC12V 9600wh |
| Mast | 7m electric |
| Cameras | provided by customer |
| Controller | MPPT 60A, 95% |
| Inverter | AC110V 32A |
| System voltage | DC 24V |
| LCD Control | power consumption, charging status, loading status, PV voltage / current / wattage, error alert |
| Battery charging | solar / city pwer supply |
| Charging time | 7 hours |
| Running time | 160 hours (example: 3*15W CCTV) |
| Trailer | R14 tires, 50mm ball/70mm ring, US standard, ball hitch, single axle, manual outrigger, 4 support legs, handbrake |
| Speed limit | 80 km/h |
| Weight | about 1250kg |
| Dimensions | 3070*3627*7000 mm |
Details:
Customer's project:
